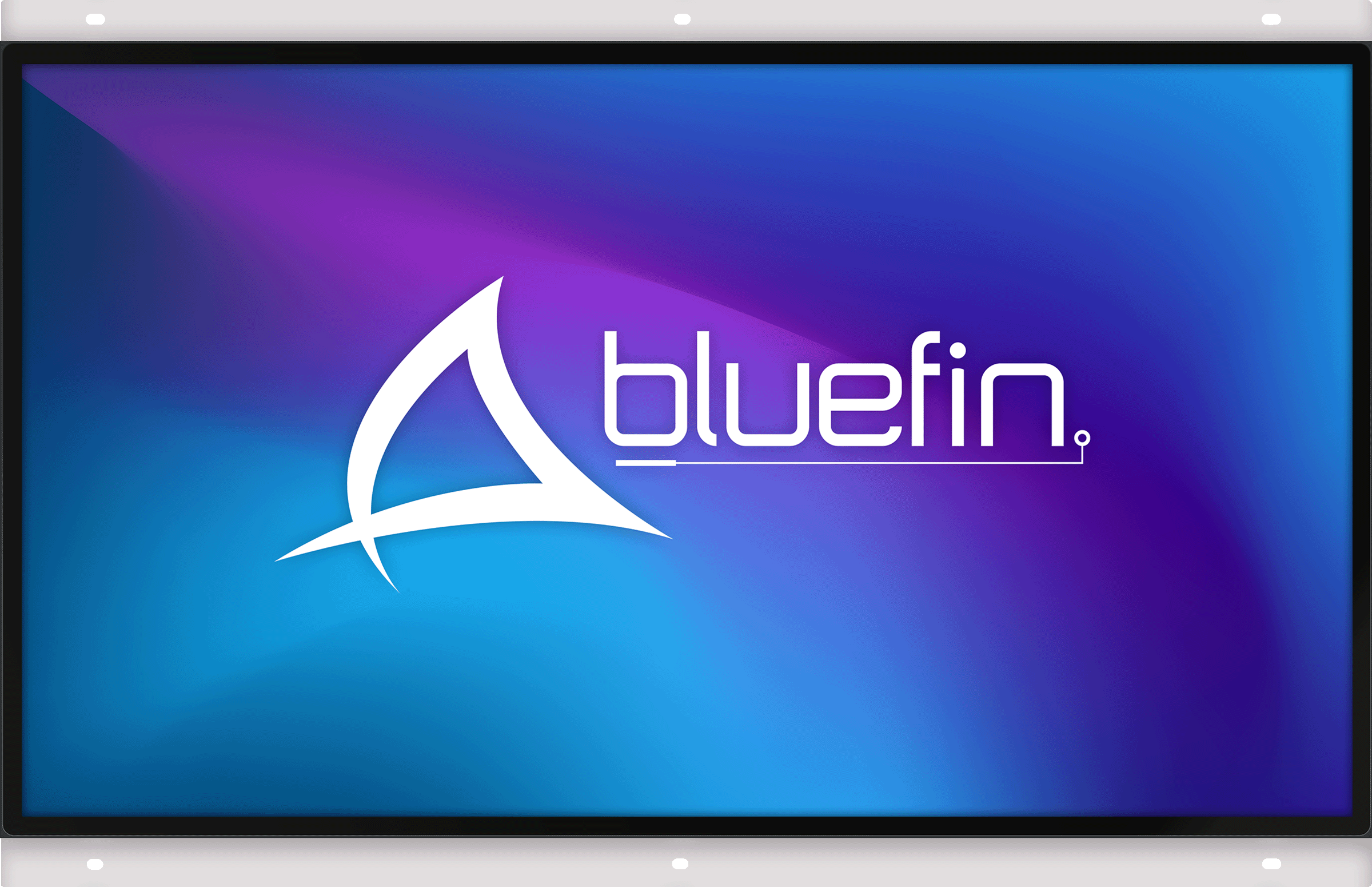

32.0’’ V Series
Ad Player & LCD Monitor
- Finished and Frameless Housings
- 1920x1080 Resolution. 350nit Brightness.
- Optional Touch
Mechanical Drawings and Images
International part numbers may vary. Contact us to ask about customization on existing screens.
Specifications
DISPLAY
32.0'' LCD Screen
Resolution: 1920x1080
Max Brightness: 350 nits
Viewing Angle: 89/89/89/89
Contrast: 1200CR
Optional: Capacitive Touch
SYSTEM
Included HDMI Connectivity
Optional touch screens with USB input
Micro-SD Card looping playback
Support for up to 7 push buttons
USB content updates
INPUT / OUTPUT
1x Micro-SD
1x USB 2.0
1x HDMI
7x I2C Button Inputs
1x I2C Motion Sensor Input
2x Stereo 3W Speaker Connectors (Internal speakers included on Finished models)
HOUSING / MOUNTING
Finished
Size: 30.7'' x 19.3'' x 2.1''
Weight: 32.6 lbs (14.8kg)
Mounting: VESA 200x100mm M6x10mm
Frameless Non-Touch
Size: 28.3'' x 18.3'' x 2.4''
Weight: 20.5 lbs (9.3kg)
Mounting: VESA 75x75mm M4x8mm
POWER
Adapter Style: Mini Molex
Adapter Output: 24V 4A
Adapter SKU: 20-0150-0466
Optional Power over Ethernet
PoE 802.3bt Type 4 (90W)
Frameless Touch
Size: 30.0'' x 19.7'' x 2.4''
Weight: 28.7 lbs (13kg)
Mounting: VESA 75x75mm M4x8mm
