Tailored Screens
Bluefin offers a wide range of pre-selected screen sizes, housing options and features to build the right screen for every environment.
See our options below for more details on screen sizes, housing styles, integrated platforms, and more options to build your digital signage solution.
HD and UHD Sizes
Resolution: 1024x600
Active Area: 6.1 x 3.4” | 154.1 x 85.9mm
Housings: Finished, Frameless, Countertop
Supported Platforms: V Series
7.0"
8.0"
Resolution: 1024x600
Active Area: 6.8 x 4.3” | 173.2 x 108.6mm
Housings: Finished, Frameless, Countertop
Supported Platforms: V Series
Resolution: 1920x1080
Active Area: 11.6 x 6.5” | 294.4 x 165.8mm
Housings: Finished, Frameless, Countertop
Supported Platforms: BrightSign Built-In, R Series, V Series
13.3"
15.6"
Resolution: 1920x1080
Active Area: 13.5 x 7.6” | 343.6 x 193mm
Housings: Finished, Frameless, Countertop
Supported Platforms: BrightSign Built-In, R Series, V Series
Resolution: 1920x1080
Active Area: 15 x 8.5” | 381.9 x 214.8mm
Housings: Finished, Frameless, Countertop
Supported Platforms: BrightSign Built-In, R Series, V Series
17.3"
Resolution: 1920x1080
Active Area: 23.5 x 13.2” | 597.6 x 336.2mm
Housings: Finished, Frameless
Supported Platforms: Flex-OS, BrightSign Built-In, R Series, V Series
27.0"
32.0"
Resolution: 1920x1080
Active Area: 27.5 x 15.5” | 698.7 x 393.3mm
Housings: Finished, Frameless
Supported Platforms: Flex-OS, BrightSign Built-In, R Series, V Series
Resolution: 1920x1080
Active Area: 42.5 x 24” | 1078.6 x 609.5mm
Housings: Finished
Supported Platforms: Flex-OS, BrightSign Built-In, R Series, V Series
43.0"
49.0"
Resolution: 3840x2160
Active Area: 47.8 x 27” | 1214.6 x 685.4mm
Housings: Finished
Supported Platforms: Flex-OS, BrightSign Built-In, R Series, V Series
Resolution: 3840x2160
Active Area: 37.2 x 21” | 934.9 x 532.3mm
Housings: Finished
Supported Platforms: Flex-OS, BrightSign Built-In, R Series, V Series
55.0"
Resolution: 1920x1080
Active Area: 10.1 x 5.7” | 257.1 x 145mm
Housings: Finished, Frameless, Countertop
Supported Platforms: BrightSign Built-In, R Series, V Series
10.1"
Resolution: 1280x800
Active Area: 8.5 x 5.3” | 217 x 135.6mm
Housings: Finished, Frameless, Countertop
Supported Platforms: BrightSign Built-In, R Series, V Series
11.6"
Resolution: 1920x1080
Active Area: 23 x 11.7” | 584.8 x 297.5mm
Housings: Finished, Frameless
Supported Platforms: BrightSign Built-In, R Series, V Series
21.5"
Resolution: 1920x1080
Active Area: 18.9 x 10.6” | 478.8 x 270.3mm
Housings: Finished, Frameless
Supported Platforms: BrightSign Built-In, R Series, V Series
23.8"
Ultrawide and Shelf-Edge Sizes
Resolution: 1920x132
Active Area: 34.6 x 2.3’’ | 878.1 x 59.3mm
Housings: Finished, Frameless
Supported Platforms: Daisy Chain
34.6"
47.1"
Resolution: 3840x160
Active Area: 47.1 x 2” | 1196.2 x 49.8mm
Housings: Finished, Frameless
Supported Platforms: Daisy Chain
Resolution: 1920x360
Active Area: 20.5 x 3.8” | 521.3 x 97.7mm
Housings: Finished, Frameless, Countertop
Supported Platforms: Flex-OS, BrightSign Built-In, R Series, V Series, Daisy Chain
20.9"
21.9"
Resolution: 1920x720
Active Area: 20.5 x 7.7” | 521.3 x 195.5mm
Housings: Finished, Frameless, Countertop
Supported Platforms: Flex-OS, BrightSign Built-In, R Series, V Series, Daisy Chain
Resolution: 1920x540
Active Area: 35.4 x 10” | 899.7 x 253mm
Housings: Finished, Frameless, Countertop
Supported Platforms: Flex-OS, BrightSign Built-In, R Series, V Series, Daisy Chain
37.0"
48.5"
Resolution: 3840x720
Active Area: 47.6 x 8.9” | 1209.6 x 226.8mm
Housings: Finished, Frameless
Supported Platforms: Flex-OS, BrightSign Built-In, R Series, V Series, Daisy Chain
Resolution: 3840x960
Active Area: 47.6 x 11.9” | 1209.6 x 302.4mm
Housings: Finished, Frameless
Supported Platforms: Flex-OS, BrightSign Built-In, R Series, V Series, Daisy Chain
49.1"
Resolution: 1920x540
Active Area: 27.8 x 7.8” | 705.6 x 198.5mm
Housings: Finished, Frameless, Countertop
Supported Platforms: Flex-OS, BrightSign Built-In, R Series, V Series, Daisy Chain
28.0"
Resolution: 1920x360
Active Area: 27.6 x 5.2” | 699.8 x 131.2mm
Housings: Finished, Frameless, Countertop
Supported Platforms: Flex-OS, BrightSign Built-In, R Series, V Series, Daisy Chain
29.0"
Resolution: 1920x290
Active Area: 36.2 x 5.5” | 919.3 x 138.9mm
Housings: Finished, Frameless, Countertop
Supported Platforms: Flex-OS, BrightSign Built-In, R Series, V Series, Daisy Chain
35.4"
Resolution: 1920x438
Active Area: 34.6 x 7.7” | 878.1 x 196.8mm
Housings: Finished, Frameless, Countertop
Supported Platforms: Flex-OS, BrightSign Built-In, R Series, V Series, Daisy Chain
36.6"
Housing Styles
Finished Housings
Designed to mount in any space out of the box. Finished screens feature sleek all-metal housings with rounded corners and a black powder-coated finish.
All-Metal Housings
Black painted finish, ask us about custom colors!
Micro-SD card security cover
VESA mounting patterns
Countertop Housings
Ready-to-deploy units for tables and counters. Countertop housings are a plug-and-play option for interactive touchscreens without a fixture.
All-Metal Housings
Black painted finish, ask us about custom colors!
Plug and play, easy to install
Removable rubber feet and secure bottom mounting options
Frameless Housings
A low-cost low-profile housing designed for kiosks, PoP fixtures and integration. Frameless housings include all-metal construction and extra mounting points.
All-Metal Housings
Front-facing mounting point flanges
Lower cost solution
VESA mounting patterns
Integrated Platforms
Flex-OS

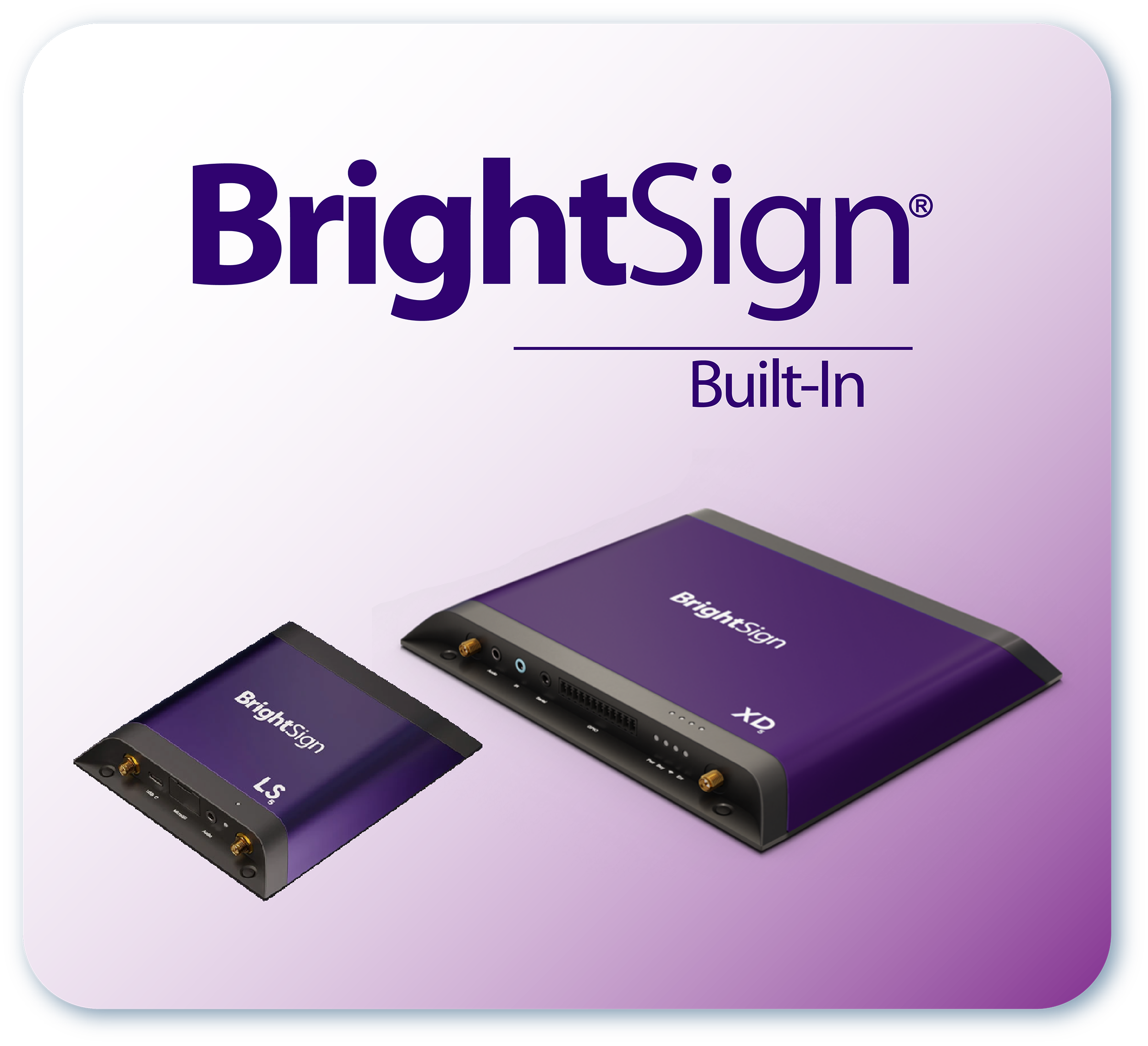

Bluefin’s flexible solution for screens with or without an integrated player. HDMI and touchscreen override on players with BrightSign or R Series integrated systems.
Create presentations and manage your fleet with BrightAuthor:Connected, BSN.Cloud and the BrightSign partner ecosystem.
R Series
Power your project on Android 11 or Debian 10 with RK3399 integrated screens.
V Series
Dual function screens featuring HDMI input and 1080p video decoding from a simple looping ad player.
Daisy Chain
Bar LCD Screens
Connect multiple ultrawide screens to a single media player with included HDMI® connectivity
