Power over Ethernet
A technology that allows network cables to simultaneously transmit data and power to a device. Rather than relying on two cables to transmit power and data separately, Power over Ethernet allows both power and network connections to run over a single cable.
Power over Ethernet offers several unique features that offer flexibility and savings to your project. These can include:
Simplicity of installation
Screens install faster and remain more organized when you have fewer cables to manage. A single ethernet cable can solve the issues of power adapters and extension cords.
Flexibility of location
Power over Ethernet is a low voltage solution that does not require an electrician to set up. Locate your PoE switch or injector as needed and run power up to 100 meters on most screens.
Safety across multiple device voltage requirements
Per IEEE standards, higher wattage PoE sources are backwards compatible with lower wattage devices. Power will be negotiated between the device and the source, and will only draw as necessary.
How does Bluefin use Power over Ethernet?
Bluefin’s screens adhere to IEEE standards for Power over Ethernet. PoE switches and injectors come labeled with these standards, which designate how much power they can transmit to each device. The standard required is dependent on LCD size and cable length.
802.3at or PoE+
Distributes up to 30W of power to each device
For 10.1’’ to 15.6’’ screens up to 300ft.
802.3bt or PoE++
Distributes up to 60W of power to each device
For 19.5’’ to 27’’ screens up to 300ft, or 32’’ screens up to 150ft
Bluefin’s Recommendations for PoE Sources
Bluefin is not sponsored by the following product’s manufacturers. Recommendations are based on in-house testing for compatibility and performance.
TL-SG1008PE: 8 Gigaport PoE+ Desktop / Rackmount Switch
8 10/100/1000Mbps RJ45 ports
Equipped with 8 PoE+ supported ports to transfer data and power over a single cable
Works with IEEE 802.3af/at compliant devices, expanding home and office networks
Innovative energy-efficient technology reduces power output by up to 75%*
Plug and play design, no configuration required

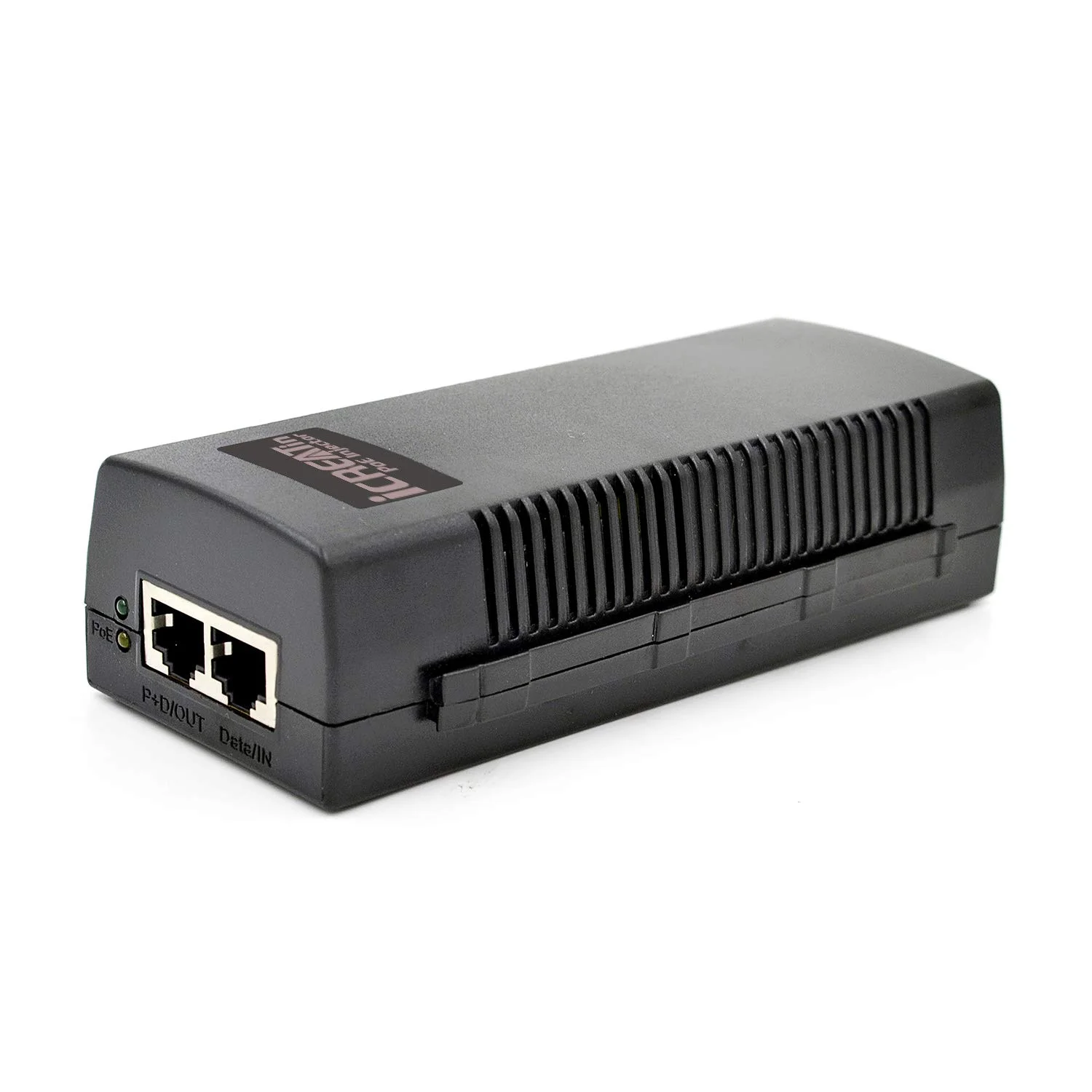

iCreatin 48V60W PoE++ Injector
Network Cable: 10BASE-T: 2-pair UTP/STP Cat.3, 4, 5, 6, 7 cable, EIA/TIA-568 100-ohm (100m);00BASE-TX: 2-pair UTP/STP Cat.5 cable, EIA/TIA-568 100-ohm (100m)
Short Circuit, Over Current and Over Voltage Full Protection
Input 100-240VDC, Output: 48V to 50V, 0-1.25Amps, Rated 60W PoE Power Output

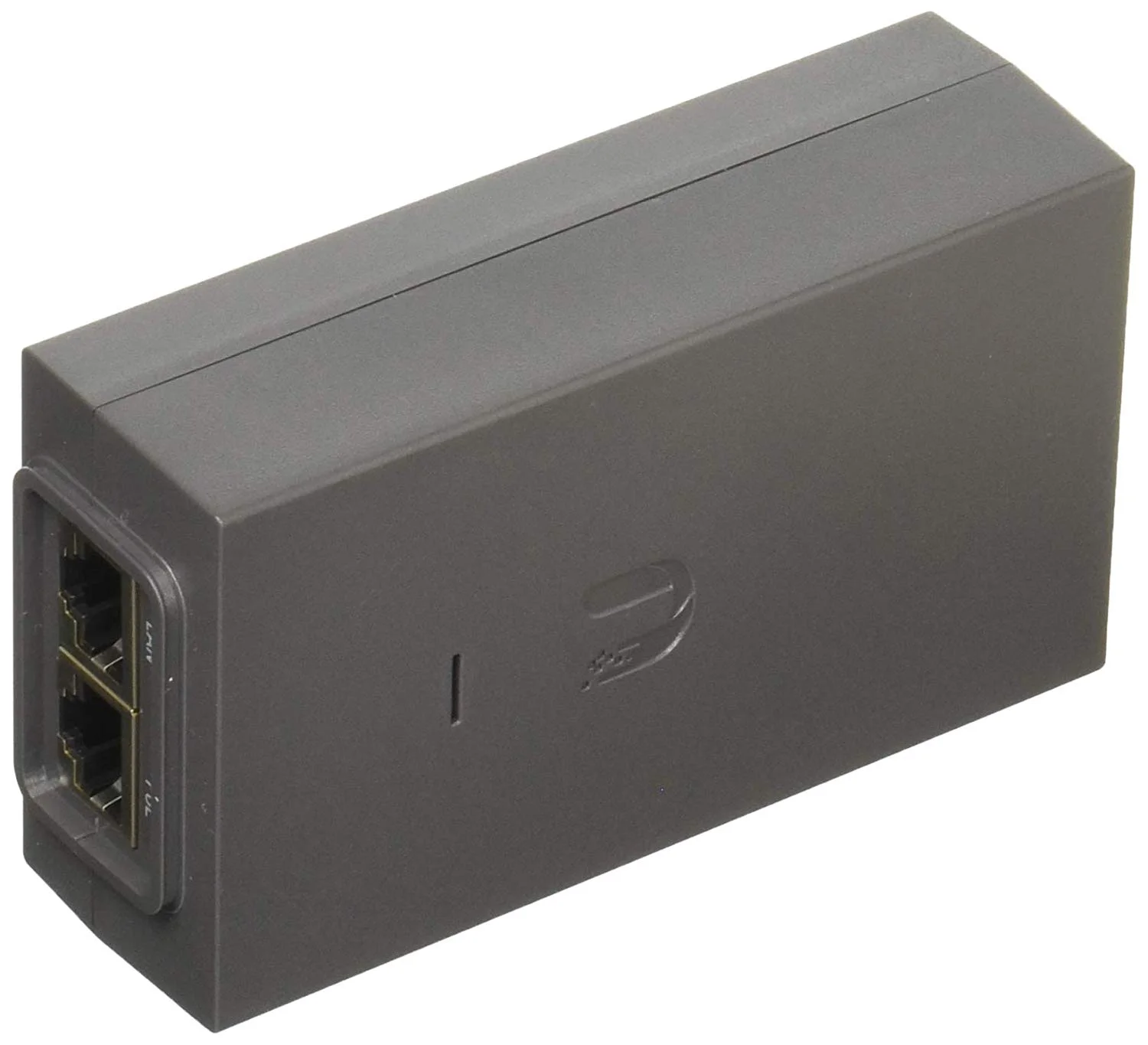

Ubiquiti Networks 50-60W PoE++ Injector
Weight: 6.77 oz.
Input Voltage: AC 120/230 V
Output Voltage: 50 V
US style power cord
Power LED
Gigabit LAN Port
Earth grounding/ESD protection
Use the chart below to determine which class of PoE output your screen requires.
| 802.3at - PoE+ (30W) | 10.1'' | 13.3'' | 15.6'' | 19.5'' | 21.5'' | 23.8'' | 27.0'' | 32.0'' |
|---|---|---|---|---|---|---|---|---|
| 6ft Cat6 Cable | Yes | Yes | Yes | No | No | No | No | No |
| 25ft Cat6 Cable | Yes | Yes | Yes | No | No | No | No | No |
| 100ft Cat6 Cable | Yes | Yes | Yes | No | No | No | No | No |
| 150ft Cat6 Cable | Yes | Yes | Yes | No | No | No | No | No |
| 200ft Cat6 Cable | Yes | Yes | Yes | No | No | No | No | No |
| 300ft Cat6 Cable | Yes | Yes | Yes | No | No | No | No | No |
| 802.3bt - PoE++ (60W) | 10.1'' | 13.3'' | 15.6'' | 19.5'' | 21.5'' | 23.8'' | 27.0'' | 32.0'' |
|---|---|---|---|---|---|---|---|---|
| 6ft Cat6 Cable | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| 25ft Cat6 Cable | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| 100ft Cat6 Cable | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| 150ft Cat6 Cable | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| 200ft Cat6 Cable | Yes | Yes | Yes | Yes | Yes | Yes | Yes | No |
| 300ft Cat6 Cable | Yes | Yes | Yes | Yes | Yes | Yes | Yes | No |
Note: 802.3bt Type 4 injectors (also known as LTPoE++) which are designed to provide up to 95W of power may see mixed results.
95W injectors may be unable to provide low enough wattage to players between 10.1’’ to 15.6’’
95W injectors are not guaranteed to improve maximum cable length support.
